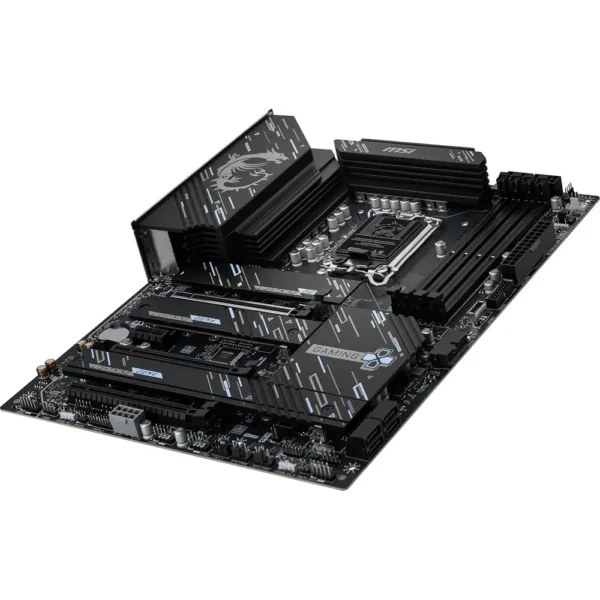

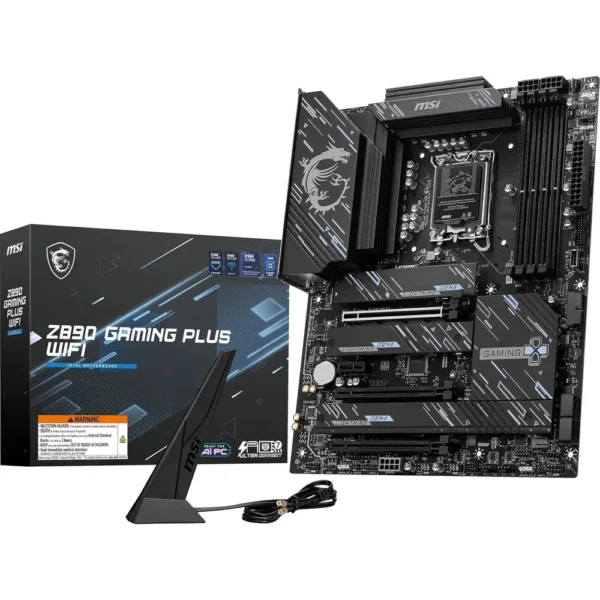

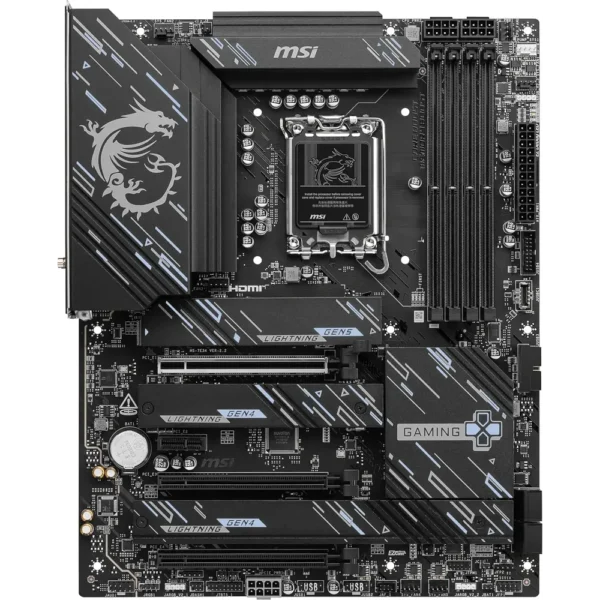

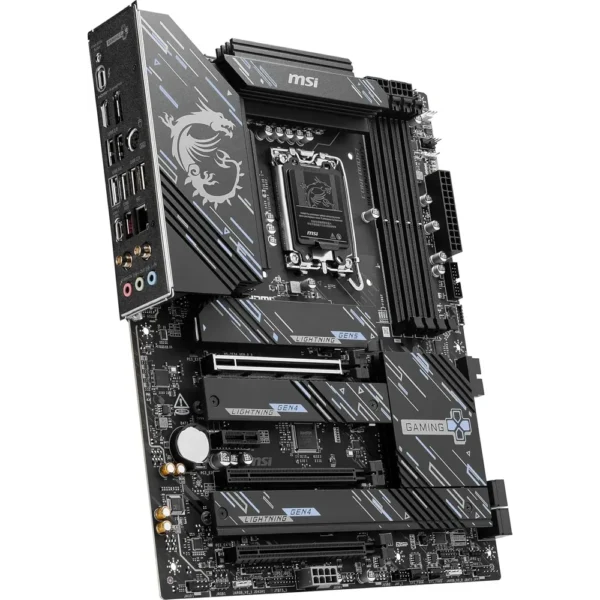

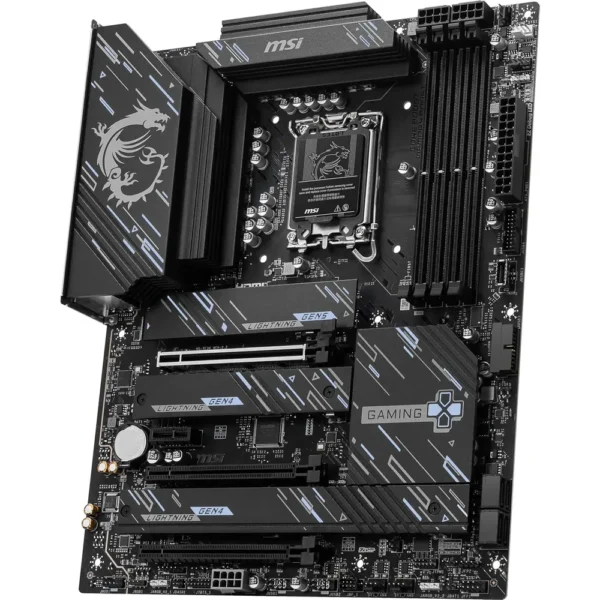

MSI MAG Z890 GAMING PLUS WIFI Motherboard – Intel LGA 1851 DDR5 Gaming Motherboard with Wi-Fi 7, Thunderbolt 4, PCIe 5.0, 5G LAN (ATX)
₨111,000
2 Years Warranty.
- Intel Core Ultra Series 2 Ready: The MSI MAG Z890 GAMING PLUS WIFI supports the latest Intel Core Ultra Processors with LGA 1851 socket for exceptional gaming performance
- DDR5 Memory Support: Features dual-channel DDR5 memory support up to 256GB with overclocking speeds reaching 9200+ MT/s for lightning-fast data processing
- Next-Gen Connectivity: Equipped with Wi-Fi 7 technology achieving 5.8Gbps speeds, Intel Killer 5G LAN, Thunderbolt 4 Type-C, and Bluetooth 5.4
- PCIe 5.0 Ready: Includes PCIe 5.0 x16 slot with Steel Armor and Lightning Gen5 M.2 connector for future-proof graphics and storage expansion
- Ultra Power Design: Features 14 Duet Rail Power System with 55A DrMOS and dual 8-pin connectors for stable power delivery under heavy loads
- EZ DIY Features: Tool-free installation with EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and magnetic EZ Antenna for hassle-free building
- Description
- Additional information
- Reviews (0)
Description
Unleash Ultimate Gaming Performance with MSI MAG Z890 GAMING PLUS WIFI
Experience next-generation gaming with the MSI MAG Z890 GAMING PLUS WIFI, a premium ATX motherboard engineered for gamers and content creators who demand uncompromising performance. This cutting-edge motherboard supports Intel Core Ultra Processors (Series 2) with the LGA 1851 socket, delivering exceptional processing power for demanding applications and immersive gaming experiences.
The motherboard features advanced DDR5 memory technology with dual-channel support up to 256GB and impressive overclocking speeds of 9200+ MT/s. Memory Boost technology ensures pure data signals through fully-isolated DDR circuits, providing optimal stability for gaming and professional workloads. The 14 Duet Rail Power System with 55A DrMOS components and dual 8-pin power connectors guarantees reliable power delivery even during intensive gaming sessions.
Connectivity reaches new heights with integrated Wi-Fi 7 technology achieving blazing-fast 5.8Gbps transmission speeds, Intel Killer 5G LAN for premium networking, and Thunderbolt 4 Type-C supporting 40Gbps bandwidth with 8K display capability. The PCIe 5.0 x16 slot with Steel Armor provides future-proof expansion for next-generation graphics cards, while Lightning Gen5 M.2 connectors deliver ultra-fast storage performance.
MSI’s innovative Frozr Guard design incorporates extended heatsinks, premium thermal pads, and EZ M.2 Shield Frozr II for superior thermal management. The EZ DIY features, including tool-free M.2 installation and magnetic antenna mounting, simplify the building process. With 7.1-channel HD Audio Boost, every gaming moment comes alive with studio-grade sound quality, making this motherboard the perfect foundation for your high-performance gaming rig.
| Chipset | INTEL Z890 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed • The DIMM slots on this motherboard only have single-sided latches. |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Onboard Thunderbolt | 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Internal IO | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. |
| LED FEATURE | 4x EZ Debug LED |

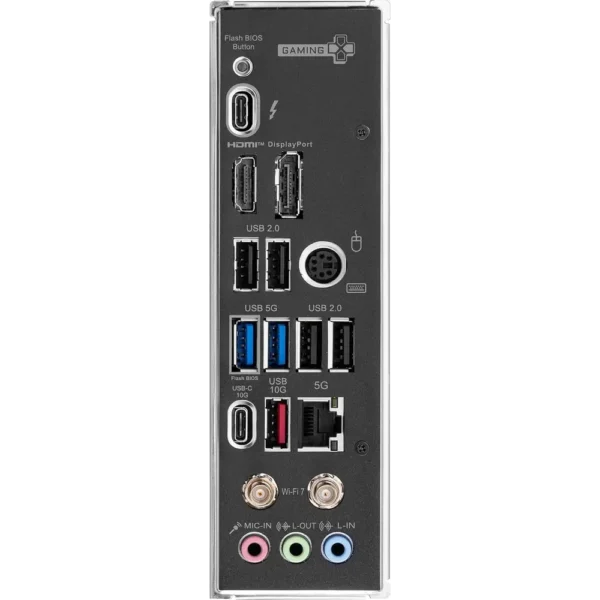

| BACK PANEL PORTS |
|
Additional information
| Brand | MSI |
|---|---|
| Color | Black |
| Socket | LGA 1851 |
| Size | ATX |
| Ram Type | DDR5 |
