ASUS PRIME Z790-P CSM ATX Motherboard – Intel LGA 1700 Socket DDR5 Support PCIe 5.0 USB 3.2 Gen 2×2 Type-C for 12th 13th 14th Gen Processors

Description

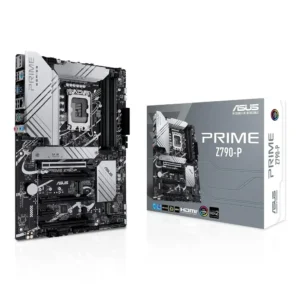

ASUS PRIME Z790-P CSM – Professional Performance for Modern Computing

The ASUS PRIME Z790-P CSM delivers exceptional performance and reliability for professional workstations and gaming builds. This ATX motherboard features the Intel LGA 1700 socket, providing full compatibility with 12th, 13th, and 14th generation Intel Core processors. Built on the robust Z790 chipset, it offers the perfect foundation for demanding applications and multitasking workflows.

Power delivery stands as a core strength of this platform. The motherboard incorporates 14+1 DrMOS power stages, each rated for 50 amperes, combined with a 6-layer PCB design. ProCool connectors ensure stable power transfer directly to your processor, while alloy chokes and durable capacitors maintain consistent performance under heavy loads. This robust power architecture extracts maximum performance from high-core-count Intel processors.

Memory performance reaches new heights with DDR5 support and ASUS Enhanced Memory Profile II (AEMP II) technology. This exclusive firmware feature optimizes memory training to unlock higher clock speeds effortlessly. The motherboard supports DDR5 speeds up to 7200MHz when overclocked, paired with OptiMem II technology for improved signal integrity across all four DIMM slots.

Storage flexibility comes standard with three M.2 slots supporting PCIe 4.0 x4 connectivity. Transfer speeds reach up to 64 Gbps, dramatically reducing boot times and application loading. The included M.2 heatsink with removable captive screws prevents thermal throttling during sustained data transfers.

Connectivity options are comprehensive. The rear I/O panel features USB 3.2 Gen 2×2 Type-C with 20 Gbps bandwidth, while the Thunderbolt (USB4) header enables add-on card support for 40 Gbps bidirectional speeds. Realtek 2.5Gb Ethernet provides high-speed networking with reduced CPU overhead. PCIe 5.0 x16 SafeSlot Core+ delivers double the bandwidth of PCIe 4.0, future-proofing your graphics card investment.

AI Cooling II technology intelligently balances thermals and acoustics. This proprietary ASUS algorithm monitors CPU temperatures and dynamically adjusts fan speeds for optimal cooling efficiency. Large VRM heatsinks with thermal pads dissipate heat effectively from MOSFETs and chokes.

The ASUS PRIME Z790-P CSM is part of the ASUS Corporate Stable Model program, providing up to 36-month product lifecycle support and includes ASUS Control Center Express software. This enterprise-grade IT management solution simplifies deployment, monitoring, and maintenance across multiple systems. Organizations benefit from extended availability and dedicated support for seamless integration into corporate environments.
